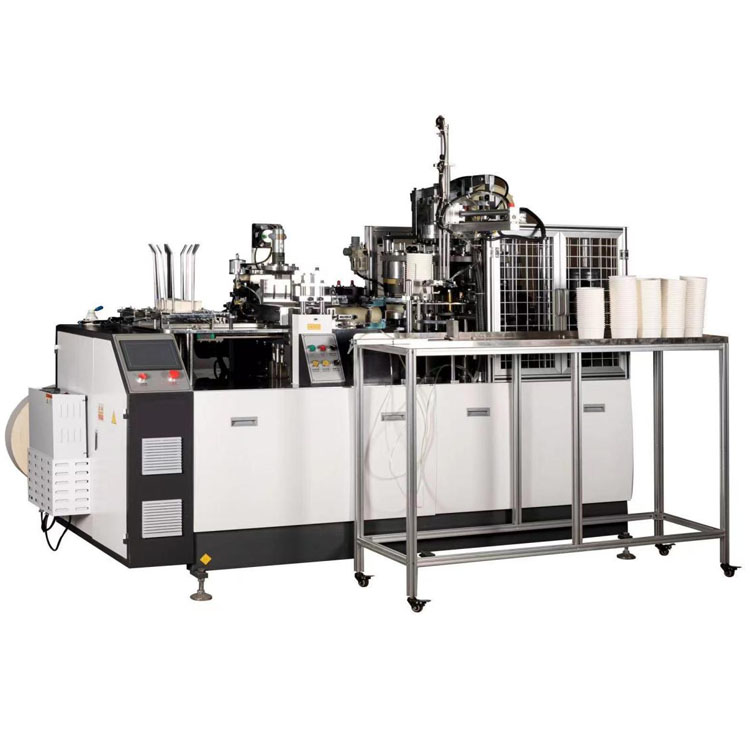

Automatic Paper Bowl Forming Intelligent Machine

Automatic paper bowl forming intelligent machine is a fully automatic paper bowl forming equipment, through the multi-row automatic paper feeding, paper anti-regression device (ensure accurate positioning), ultrasonic welding, oil injection, robot paper tube transfer, cup tube, bottom flushing, bottom folding, preheating, knurling, rolling, cup unloading and other continuous processes, can be stable production of a variety of different specifications of paper bowls, Is my company independent new research and development through comprehensive technical improvement of the new shape paper bowl molding equipment.

Yongbo Machinery  Automatic paper bowl forming intelligent machine Basic information



Model number	YB-w35	brand	YongBomachinery
speed	65-70min/pcs	country	China
trademark	Customized	After sale	Online
transport	Wooden Case	warranty	1year(non-human reason)



Yongbo Machinery  Automatic paper bowl forming intelligent machine Machine data

Model number	Automatic paper bowl forming intelligent machine
Paper bowl size	20-50 OZ (Mold replaceable)
capacity	60-70 PCS/min (speed is affected by the size of the cup and the thickness of the paper quality)
Raw material	Single or double sided PE coated paper (suitable for hot and cold beverage bowls)
Gram weight of paper	150-350gsm
voltage	50/60HZ,380V/220V
Total power	9KW
Machine weight	3200KG
Machine size	2450*1350*2100mm (Molding machine size) 1500*450*1350mm (size of receiving platform)
Cup body bonding mode	Ultrasonic wave



Yongbo Machinery Automatic paper bowl forming intelligent machine Flat display

Yongbo Machinery Automatic paper bowl forming intelligent machine  Product introduction

It mainly has the following characteristics:

1. Increase the output of finished products. It used to produce 30-40 birds a minute, but now it can reach 60-70 birds a minute. While increasing production, electricity consumption is around 9KW.



2, the size of the equipment is reduced, the structure is more reasonable and compact, the process is more simple, the cup is simple and convenient.



3. The bottom cutting knife is placed at the bottom of the cup mold, and the bottom paper is directly pushed into the bottom of the cup barrel after being cut off, which can avoid the phenomenon of turning over the bottom.



4, rolling edge lifting using a separate CAM, so the lifting plate stroke is greatly reduced, machine vibration is reduced, improve the stability.



5, this equipment adopts light control contactless multi-point switch, detect abnormal work, realize automatic fault alarm stop, protect the machine parts from collision, improve the stability and life of the machine.



6. The three-in-one CAM is used to drive the left and right cup clips, which makes no noise when working. The stable and reliable action of holding the cylinder is the first technology in China

Can produce from 20 oz to 60 oz, this model is suitable for the domestic market paper bowl, breakfast bowl, instant noodle bowl, Master Kong instant noodle bowl, Uni-president instant noodle bowl, soup bowl and cold drink paper bowl production.

Investment prospects: The market demand is large, adapt to the needs of social development, paper container will be banned plastic paper cup. The machine covers an area of less, less power consumption, low labor intensity, simple operation (a person can operate), and investment needs less capital, small risk, very suitable for family investment and entrepreneurship.

(Note: The actual production capacity of the machine is affected by many factors. The above data is for reference only.)

PLC	Electrical system
Hot-air heater	CAM drive and automatic lubrication system

Production display
