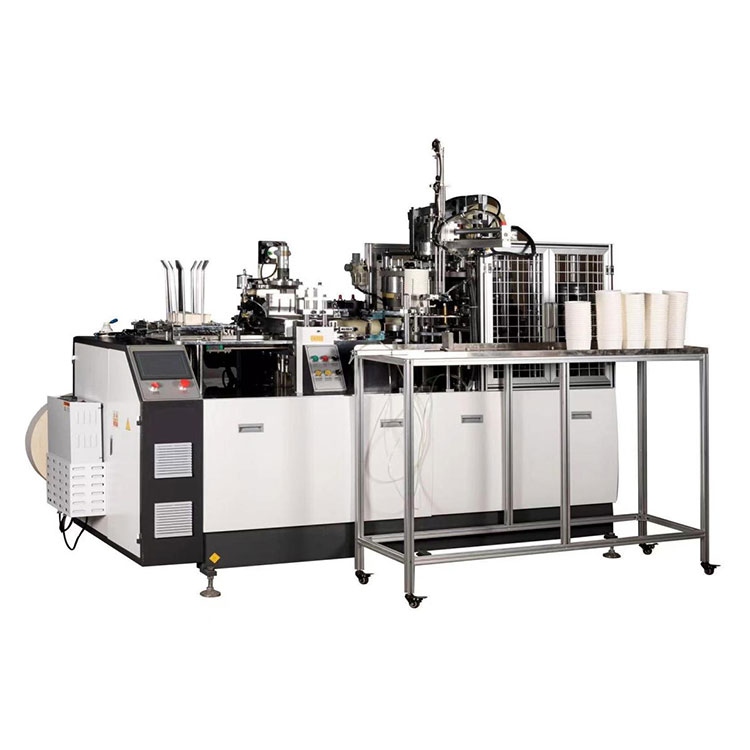

Fully Automatic Paper Bowl Machine

The YB-W35 Intelligent Medium-Speed Paper Bowl Forming Machine is equipped with two cooling fans that efficiently expedite the paper cooling process, leading to enhanced cup sealing quality. Overall, the Yongbo Machinery Fully Automatic Paper Bowl Machine provides superior performance and increased efficiency in paper cup production.

Model:YB-W35

PDF DownLoad

Product Description

This Fully Automatic Paper Bowl Machine Adopt stepless frequency conversion speed regulation (production speed can be easily adjusted),

Photoelectric monitoring: automatic fault alarm and counting.

Design and manufacture molds according to customer's requirements, and can produce paper bowl jackets of various specifications and sizes by exchanging the molds, realizing one machine with multiple products.

Automatic paper feeding, gluing, automatic bonding, inner cup inhalation, seamless bonding between the coat and inner cup, and out of the bowl.

Yongbo Machinery Fully Automatic Paper Bowl Machine Parameter (Specification)

Model	YB-W35 automatic paper bowl forming machine
Cup size	20-50oz(mould can be changed as the requirements of clients)
Raw materials	Single /Double PE coated paper
Paper weight	140-350gsm
speed	60-75pcs/min
Power source	380V 50Hz
Total Power	4.8KW
Weight	2400KG
dimension	2450 x 1300 x 1750mm;
LWH	2450 x 1300 x 1750mm;
Air pressure requirements	0.6Mpa, output :0.6 m3/minute
Machine should work with the air compressor

Yongbo Machinery Fully Automatic Paper Bowl Machine Feature And Application

This Fully Automatic Paper Bowl Machine Reliability:

The YB-W35 Intelligent Medium-Speed Paper Bowl Forming Machine offers high performance, efficiency, and quality. Its integral steel body and auto oil lubrication system ensure long-term normal and stable operation. This machine is also energy-efficient with its advanced high-precision open cam drive and gear drive, as well as its servo tracking bottom paper feeding system that effectively saves raw materials.

In addition to its technical features, this Fully Automatic Paper Bowl Machine is also humanizing with its man-machine interface PLC system that controls the long-term stable operation of the whole machine. This interface allows for easy operation and monitoring of the machine's performance, making it user-friendly and accessible to operators. Overall, the YB-W35 offers a high-quality and efficient solution for paper bowl production.

Yongbo Machinery Fully Automatic Paper Bowl Machine After-sale service:

Yongbo Machinery is committed to providing exceptional customer service for their Fully Automatic Paper Bowl Machine. After the equipment leaves the factory, the company provides professional technicians to install and debug the equipment to ensure that it produces high-quality products that meet customer satisfaction. Additionally, the machine comes with a one-year free warranty and lifetime technical support to ensure long-term reliability.

In terms of later service, Yongbo Machinery has set up a team of professional and technical personnel who travel throughout the country to visit customers regularly. They discuss any new problems that customers may be experiencing and work to solve them in a timely manner. Furthermore, the company cooperates with customers to formulate sales plans and ensure that they can purchase and use the machine with confidence and comfort. Overall, Yongbo Machinery is dedicated to providing exceptional after-sales service and support to its customers.
