Medium Speed Paper Bowl Machine

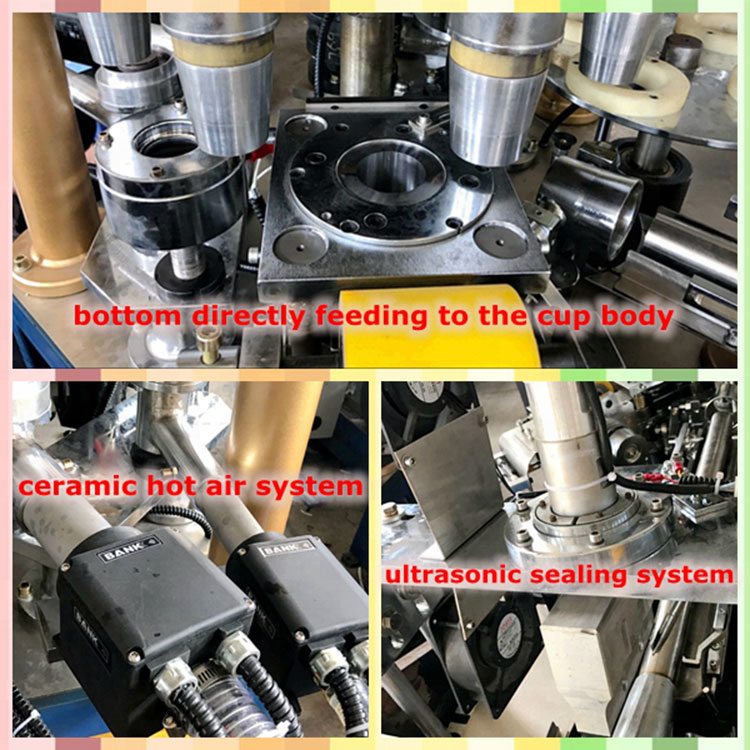

The Yongbo Machinery Medium Speed Paper Bowl Machine has undergone significant upgrades to enhance its performance. The inclusion of a bottom heating system significantly improves the sealing quality of paper cups. Furthermore, this updated model boasts 10 cup molds, enabling faster and more efficient operation compared to the previous version's 8 cup molds.

Model:YB-W35

The addition of steel plates in the design ensures a stable and smooth paper feeding process, minimizing potential disruptions during production. Additionally, the incorporation of two cooling fans effectively cools the paper fan, resulting in improved cup sealing and overall product quality.

Yongbo Machinery Medium speed paper bowl machine Parameter (Specification)

Model	YB-W35 automatic paper bowl forming machine
Cup size	20-50oz(mould can be changed as the requirements of clients)
Raw materials	Single /Double PE coated paper
Paper weight	140-350gsm
speed	60-75pcs/min
Power source	380V 50Hz
Total Power	4.8KW
Weight	2400KG
dimension	2450 x 1300 x 1750mm;
LWH	2450 x 1300 x 1750mm;
Air pressure requirements	0.6Mpa, output :0.6 m3/minute
Machine should work with the air compressor

Yongbo Machinery Medium speed paper bowl machine Feature And Application

This Medium speed paper bowl machine Reliability:

The YB-W35 Intelligent Medium-Speed Paper Bowl Forming Machine offers superior performance, efficiency, and quality. With its integral steel body and auto oil lubrication system, it ensures stable and long-term operation. This machine is also energy-efficient due to its advanced high-precision open cam drive and gear drive, as well as its servo tracking bottom paper feeding system that saves raw materials.

Other features of this paper bowl machine include a photoelectric failure-detecting system, PLC control system, stretch knife for bottom cutting, and Switzerland Leister heating device for cup body and bottom sealing. The knurling device is hardened for a more beautiful finish and longer lifespan.
