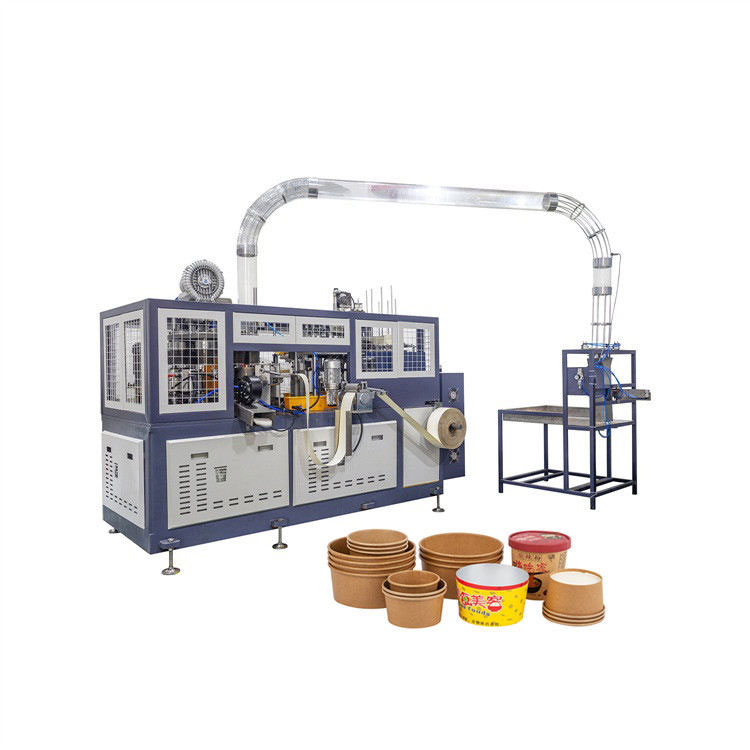

PE Coated Fast Food Paper Bowl Container Making Machine

This PE Coated Fast Food Paper Bowl Container Making Machine adopts automatic oil lubrication system( oil circulation system is including oil motor,filter, copper pipe )which makes all gear moving parts working at high speed much more smoothly and greatly Improve the service life of spare parts。temperature controller and speed converter.All the operation of machine can be finished easily by this panel。This machine Control panel with good quality switches

Model:YB-W35

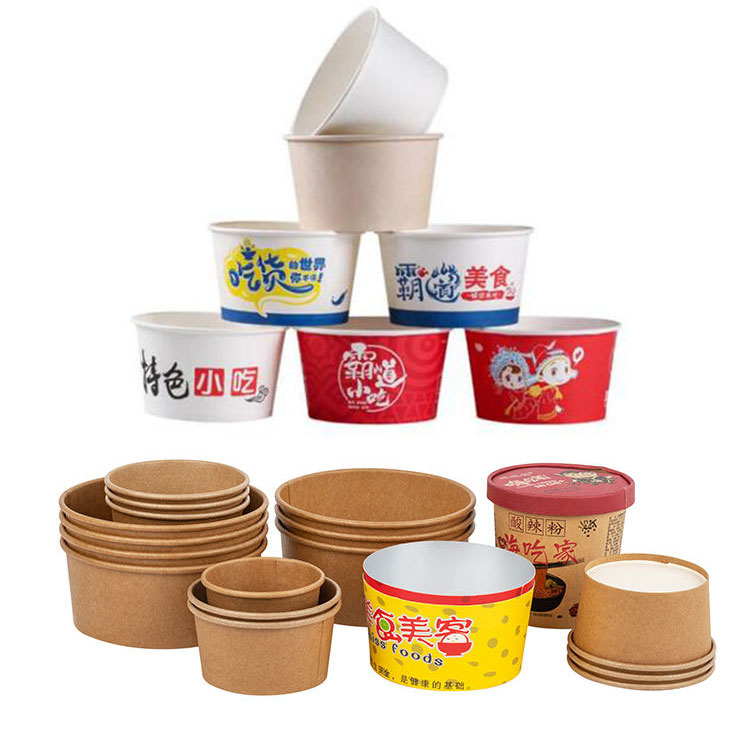

The PE Coated Fast Food Paper Bowl Container Making Machine from Yongbo Machinery boasts versatility, capable of fabricating single-sided or double-sided PE coated paper bowls spanning from 20 oz to 60 oz. This broad capacity caters to a diverse range of paper bowl applications, encompassing market paper bowls, breakfast bowls, instant noodle bowls, soup bowls, and cold drink paper bowls.

While the upfront cost of the machine and raw materials for double-sided PE coated paper bowls may be higher, the investment potential is substantial. With the increasing demand for paper containers, particularly in areas where plastic cups and containers are being phased out, this machine presents a compelling business opportunity.

Occupying a compact space, the machine consumes minimal electricity and requires low labor intensity. Its intuitive operation allows for single-person management, minimizing investment requirements and risk. This makes it an ideal choice for families or individuals seeking to embark on a small business venture or entrepreneurial journey.

In summary, Yongbo Machinery's PE Coated Fast Food Paper Bowl Container Making Machine offers a lucrative opportunity for those looking to capitalize on the expanding paper container market while minimizing investment risk and operational costs.

Yongbo Machinery PE Coated Fast Food Paper Bowl Container Making Machine Parameter (Specification)

Model	YB-W35 automatic paper bowl forming machine
Cup size	20-50oz(mould can be changed as the requirements of clients)
Raw materials	Single /Double PE coated paper
Paper weight	140-350gsm
speed	60-75pcs/min
Power source	380V 50Hz
Total Power	4.8KW
Weight	2400KG
dimension	2450 x 1300 x 1750mm;
LWH	2450 x 1300 x 1750mm;
Air pressure requirements	0.6Mpa, output :0.6 m3/minute
Machine should work with the air compressor

Yongbo Machinery PE Coated Fast Food Paper Bowl Container Making Machine Feature And Application

This PE Coated Fast Food Paper Bowl Container Making Machine Reliability:

YB-W35 intelligent medium-speed paper bowl forming machine has the advantages of high performance, high efficiency and high quality;

The integral steel body and the auto oil lubrication system ensure long-term normal and stable operation of the machine

This PE Coated Fast Food Paper Bowl Container Making Machine Energy efficient:

The advanced high-precision open cam drive and gear drive make it more accurate and stable; Servo tracking bottom paper feeding locks the size of the bottom paper , which effectively saves raw materials;

This PE Coated Fast Food Paper Bowl Container Making Machine Humanizing:

The man-machine interface PLC system controls the long-term stable operation of the whole machine;

PE Coated Fast Food Paper Bowl Container Making Machine Details Function details and part of the molding process:

Adopt stepless frequency conversion speed regulation (production speed can be easily adjusted),

Photoelectric monitoring: automatic fault alarm and counting.

Design and manufacture molds according to customer's requirements, and can produce paper cups of various specifications and sizes by exchanging the molds to achieve multiple products in one machine.

1. This machine is designed to automatically transform fan-shaped paper, which is the unfolded shape of a cup, into the shape of a paper bowl.

2. The ultrasonic system is employed to join the walls of the paper bowl together.

3. The bottom of the paper bowl is made of roll paper, which is automatically fed and punched.

4. Bonding of bowl body and bowl bottom: hot air blowing bonding.

5. Knurling refers to the process of creating a textured or patterned surface on the bottom of a paper bowl through mechanical movement after the bottom is glued. This process helps to increase the friction between the paper bowl and the surface it sits on, preventing it from slipping and improving its stability.

6. Crimping refers to the process of folding and shaping the rim of the paper bowl to create a smooth and sturdy edge. This is achieved through mechanical movement that presses and shapes the edge of the bowl.

The user-friendly design and easy-to-use touch screen control panel make operation of the machine more convenient and efficient. The machine also has a fault diagnosis system that can quickly identify and resolve any issues that may arise during production. This helps to minimize downtime and improve overall production efficiency. Additionally, the machine has a compact design that takes up less space, making it suitable for a variety of production environments.
