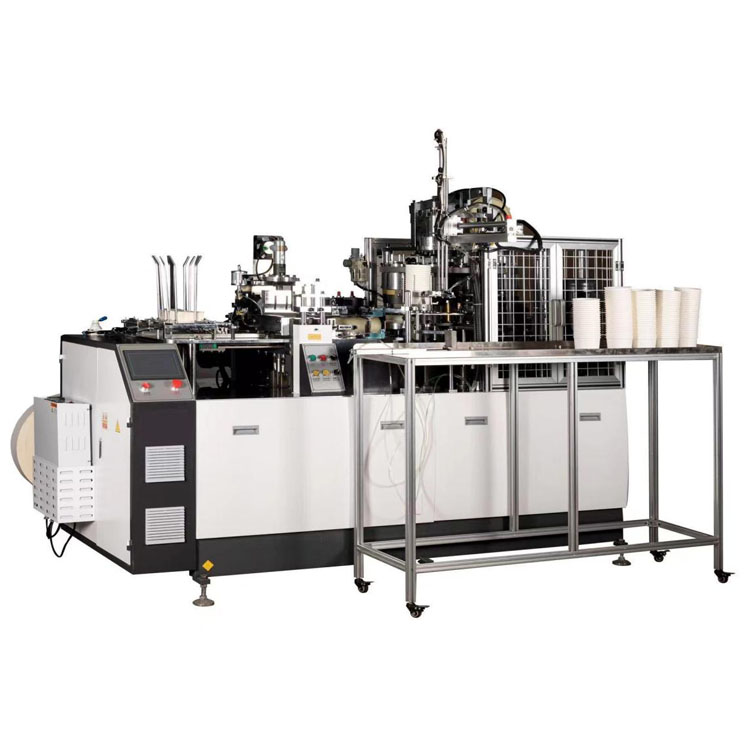

Semi-Automatic Ultrasonic Adhesive Paper Bowl Machine

Semi-automatic ultrasonic adhesive paper bowl machine is developed on the basis of fully absorbing the latest Korean bowl machine according to the domestic situation, through automatic paper feeding (printed fan paper), two preheating, sealing (bowl wall) oil injection (lubrication of the top roll), flushing (automatic cutting bowl bottom from web paper) two bottom heating, knurling (bowl bottom sealing) edge rolling (top roll) water injection line, unloading bowl collection and other continuous processes, As well as with photoelectric detection, fault alarm, counting and other functions, is the production of paper soup bowl, convenient noodle bowl, paper bowl with a large capacity and large diameter bowl container ideal equipment.

Yongbo Machinery  Semi-automatic ultrasonic adhesive paper bowl machine Basic information



Model number	YB-w35	brand	YongBomachinery
speed	65-70min/pcs	country	China
trademark	Customized	After sale	Online
transport	Wooden Case	warranty	1year(non-human reason)



Yongbo Machinery  Semi-automatic ultrasonic adhesive paper bowl machine Machine data

Model number	Semi-automatic ultrasonic adhesive paper bowl machine
Paper bowl size	20-50 OZ (Mold replaceable)
capacity	60-70 PCS/min (speed is affected by the size of the cup and the thickness of the paper quality)
Raw material	Single or double sided PE coated paper (suitable for hot and cold beverage bowls)
Gram weight of paper	150-350gsm
voltage	50/60HZ,380V/220V
Total power	9KW
Machine weight	3200KG
Machine size	2450*1350*2100mm (Molding machine size) 1500*450*1350mm (size of receiving platform)
Cup body bonding mode	Ultrasonic wave



Yongbo Machinery Semi-automatic ultrasonic adhesive paper bowl machine Flat display

Yongbo Machinery Semi-automatic ultrasonic adhesive paper bowl machine  Product introduction

For the production of "single (double) PE forest film" disposable paper bowl. This machine is easy to operate (a person), stable performance, less land, high efficiency, is the first choice for investment and entrepreneurship projects.

Specification: 20-50 oz (can be changed according to the actual capacity of users)

Material: 150-300g/square meter (single and double PE coated paper)

Production speed: 60-75 PCS/min

Power supply: 380V 50HZ

Weight: 2500KG

Total power: 9KW

Dimensions: 2450*1350*2100mm

Bowl production cost: determined by the size of the bowl, the weight of the paper used, and the number of printing colors:

Other remarks: We can customize various specifications of paper bowl machinery and paper bowl mold according to customer requirements; .

(Note: The actual production capacity of the machine is affected by many factors. The above data is for reference only.)

PLC	Electrical system
Hot-air heater	CAM drive and automatic lubrication system

Production display
