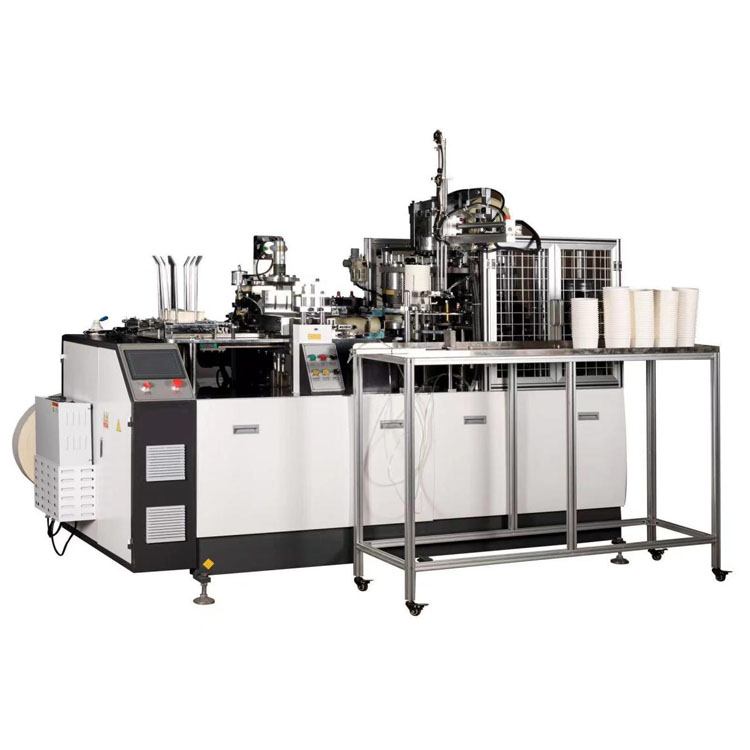

Single Plate High Speed Intelligent Paper Bowl Forming Machine

The single-plate high-speed intelligent paper bowl forming machine, derived from the ordinary paper cup machine, has undergone significant improvements in mechanical strength and stability. The machine features continuous processes that include oil filling, bottom flushing, heating, knurling, curling, and blowing, among others.

Send Inquiry

Product Description

Yongbo Machinery Single plate high speed intelligent paper bowl forming machine Product introduction

Single plate high speed intelligent paper bowl forming machine based on ordinary paper cup machine, the mechanical strength and stability of the machine have been greatly improved through improvement. The machine has continuous processes such as filling oil, flushing bottom, heating, knurling, curling, blowing and so on. It can produce single and double-sided coated drink cups, ice cream and other platform containers. This machine adopts the air blower, high speed precision intermittent separator, has the characteristics of accuracy and reliability, is the paper cup machine production industry update suitable products. (Note: The actual production capacity of the machine is affected by many factors. The above data is for reference only.)

Yongbo Machinery Single plate high speed intelligent paper bowl forming machine Basic information

Model number	YB-w35	brand	YongBomachinery
speed	65-70min/pcs	country	China
trademark	Customized	After sale	Online
transport	Wooden Case	warranty	1year(non-human reason)

Yongbo Machinery Single plate high speed intelligent paper bowl forming machine Machine data

Model number	Single plate high speed intelligent paper bowl forming machine
Paper bowl size	20-50 OZ (Mold replaceable)
capacity	60-70 PCS/min (speed is affected by the size of the cup and the thickness of the paper quality)
Raw material	Single or double sided PE coated paper (suitable for hot and cold beverage bowls)
Gram weight of paper	150-350gsm
voltage	50/60HZ,380V/220V
Total power	9KW
Machine weight	3200KG
Machine size	245013502100mm (Molding machine size) 15004501350mm (size of receiving platform)
Cup body bonding mode	Ultrasonic wave

Yongbo Machinery Single plate high speed intelligent paper bowl forming machine Flat display


PLC	Electrical system

Hot-air heater	CAM drive and automatic lubrication system

Production display
