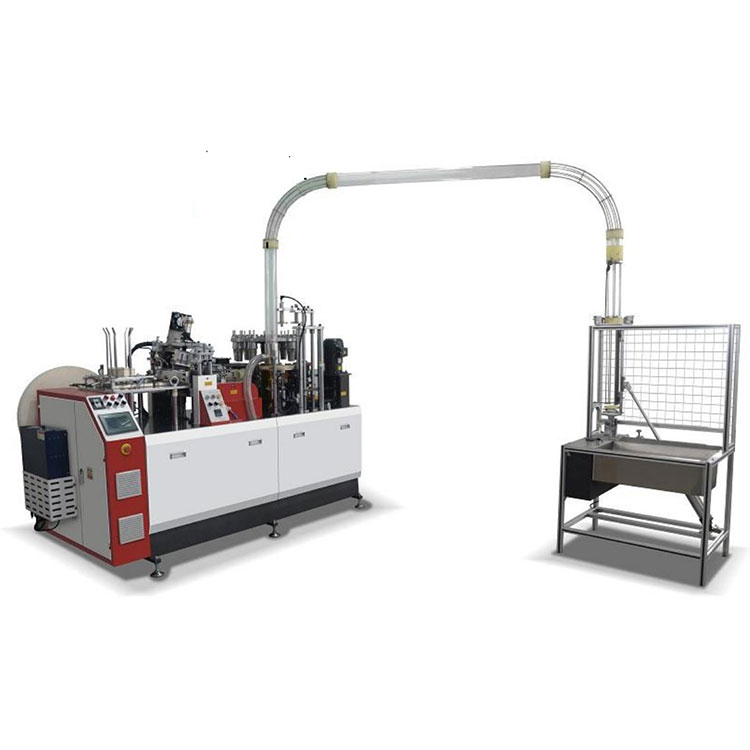

Medium Speed Paper Cup Forming Machine Disposable Paper Cup Automatic
Medium Speed Paper Cup Forming Machine Disposable Paper Cup Automatic
This YB-S100 Medium Speed Paper Cup Forming Machine Disposable Paper Cup Automatic adopts automatic oil lubrication system( oil circulation system is including oil motor,filter, copper pipe )which makes all gear moving parts working at high speed much more smoothly and greatly Improve the service life of spare parts。temperature controller and speed converter.All the operation of machine can be finished easily by this panel。This machine Control panel with good quality switches ,
Send Inquiry
PDF DownLoad
Product Description
Yongbo Machinery High Speed Gear System Paper Cup Machine Introduction
The new design of this Yongbo Machinery High Speed Gear System Paper Cup Machine includes a bottom heating system that enhances the sealing effect of the paper cups. It also operates faster than the previous model with its 10 cup molds compared to the old 8 cup molds. The steel plate presses the bottom paper to ensure stable and smooth paper feeding. Additionally, the two cooling fans facilitate faster cooling of the paper fan and improve the sealing of the cup fan.
YB-S100 medium speed paper Cup forming machine Disposable paper cup automatic ultrasonic paper cup forming machine Parameter (Specification)
|
S100 Paper cup machine |
S100 Paper cup machine |
|
Paper size |
2-12oz |
|
Gas source |
0.5-0.8MPa，0.4cbm/min |
|
Paper specification |
150-350 GSM single/double PE coated paper |
|
Production speed |
100-110 pcs/min |
|
Voltage |
220V/380V |
|
Power |
5KW |
|
Machine weight |
2500KG |
|

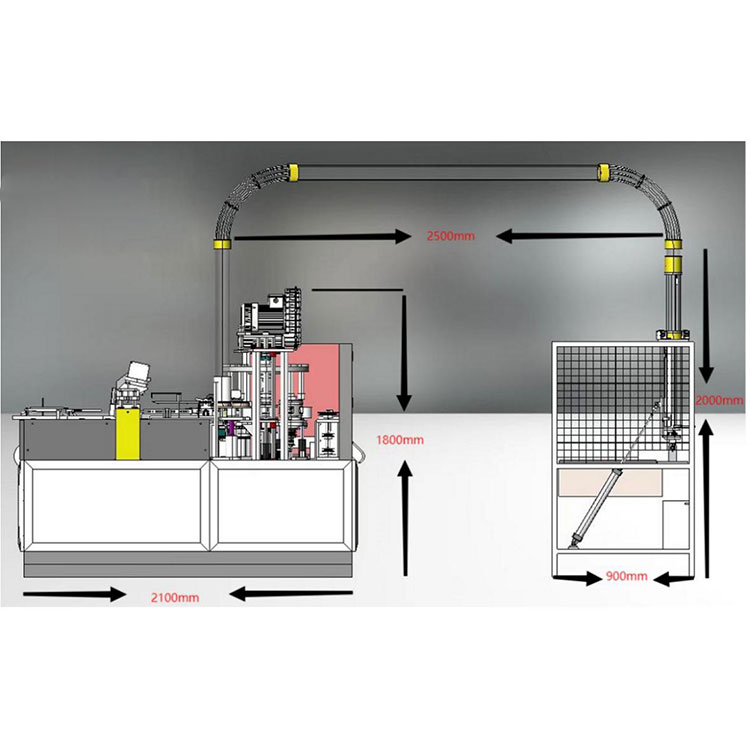

External size |
2200mm*1350mm*1900mm |
|
Cup boned way |
Ultrasonic |
|
Note |
Customized service is available |
YB-S100 medium speed paper Cup forming machine Disposable paper cup automatic ultrasonic paper cup forming machine Feature And Application
The control panel of this paper cup maker is equipped with high-quality switches, a temperature controller, and a speed converter, ensuring easy operation of the machine. The new design includes a bottom heating system that improves the sealing effect of the paper cup compared to the old design. The operation board is made of a large, thick integrated steel board, which makes it highly durable and easy to clean.
YB-S100 medium speed paper Cup forming machine Disposable paper cup automatic ultrasonic paper cup forming machine Details
Our newly designed paper cup forming machine is a fully automated machine that can produce a variety of paper cup sizes through a continuous process. This process includes automatic paper feeding, anti-withdrawal devices to ensure proper positioning, ultrasonic welding, paper fan transfer by magic hand, silicone oil lubrication, bottom punching, bottom folding, bottom pre-heating, bottom knurling, and cup discharge. Our company has conducted extensive research and development to improve the machine's stability and overall technical capabilities.
