Disposable Medium Speed Tea Coffee Paper Cup Machine

As the professional manufacturer, we would like to provide you high quality Disposable Medium Speed Tea Coffee Paper Cup Machine. "To achieve zero faults via continuous improvement, to satisfy our customers' needs and expectations, to make pledges we fully understand and think we can keep, and to keep all commitments to customers on schedule," is our guiding concept.

Disposable Medium Speed Tea Coffee Paper Cup Machine Basic information

Model number	YB-S100	brand	YongBomachinery
speed	100-110min/pcs	country	China
trademark	Customized	After sale	Online
transport	Wooden Case	warranty	1year(non-human reason)

Yongbo Machinery  Disposable Medium Speed Tea Coffee Paper Cup Machine Machine data

Model number	Automatic disposable medium speed paper cup machine tea coffee paper cup forming manufacturing machinery ultrasonic heating
Paper cup size	2-12oz (Mold replaceable, Max cup height: 115mm, Max bottom width: 75mm)
Operating speed	100-110 PCS/min (speed is affected by cup size, paper quality thickness)
Raw material	Single or double sided PE coated paper (suitable for hot and cold drink cups)
Gram weight of paper	150-350 grams per square meter
voltage	50/60HZ,380V/220V
Total power	5 kw
Gross weight	2500 kg
Machine size (length * width * height	2200*1350*1900mm (machine size) 900*700*2100mm (Cup receiver size)
Cup body bonding mode	Ultrasonic wave

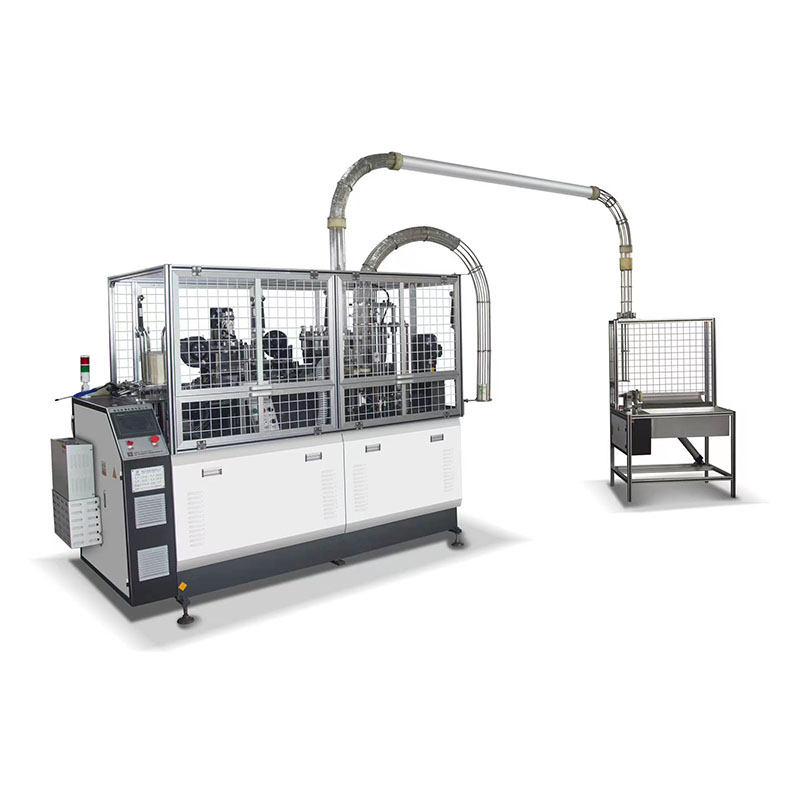

Yongbo Machinery Disposable Medium Speed Tea Coffee Paper Cup Machine Flat display

Yongbo Machinery Disposable Medium Speed Tea Coffee Paper Cup Machine introduction



The S100 Disposable Medium-Speed Tea Coffee Paper Cup Machine is a multi-station automatic forming machine. It operates through continuous processes such as automatic paper feeding, sealing (cup wall gluing), oil filling, bottom filling, heating, knurling, rolling, and more. Equipped with photoelectric detection, fault alarm, counting, and other functions, it serves as an ideal device for producing various paper containers including tasting cups, drink cups, tea cups, coffee cups, advertising cups, ice cream cups, and other conical food containers.

Main technical parameters:

Paper cup size: 2.5-12 oz can be made

Paper material: 150-- 350 g/ m2 coated paper on one or both sides (single or double sided PE coated paper)

Cup speed: 100-110 PCS/min

Power requirements: 220V 50Hz or 380V 50Hz can be used

Total work rate: 5 KW

Machine weight: 2 tons

Note: We can customize and produce various specifications of paper cup machinery and mold according to customer requirements(Note: The actual production capacity of the machine is affected by many factors. The above data is for reference only.)



Ten station cup membrane body	Bottom cover and crimped edges
CAM drive system	Integrated workbench

Production display
