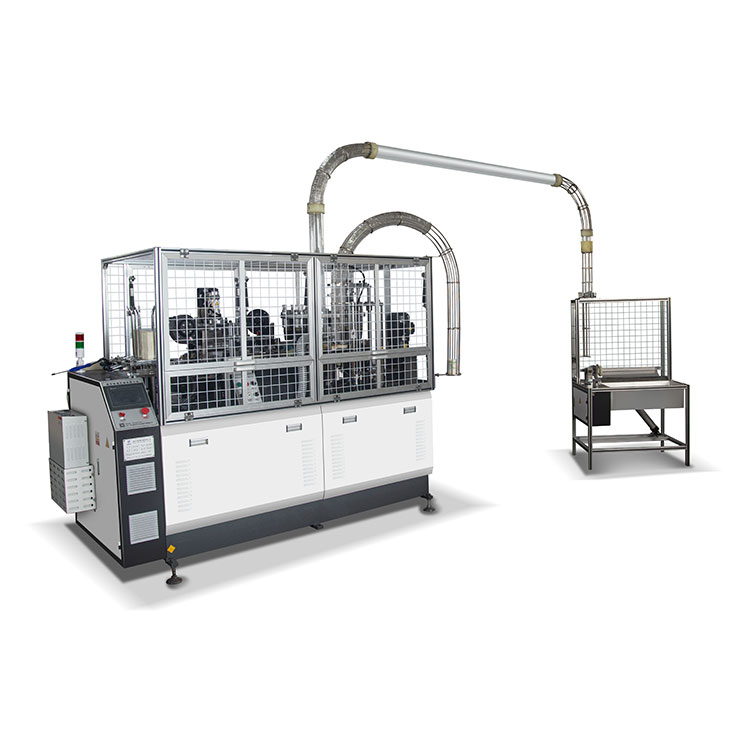

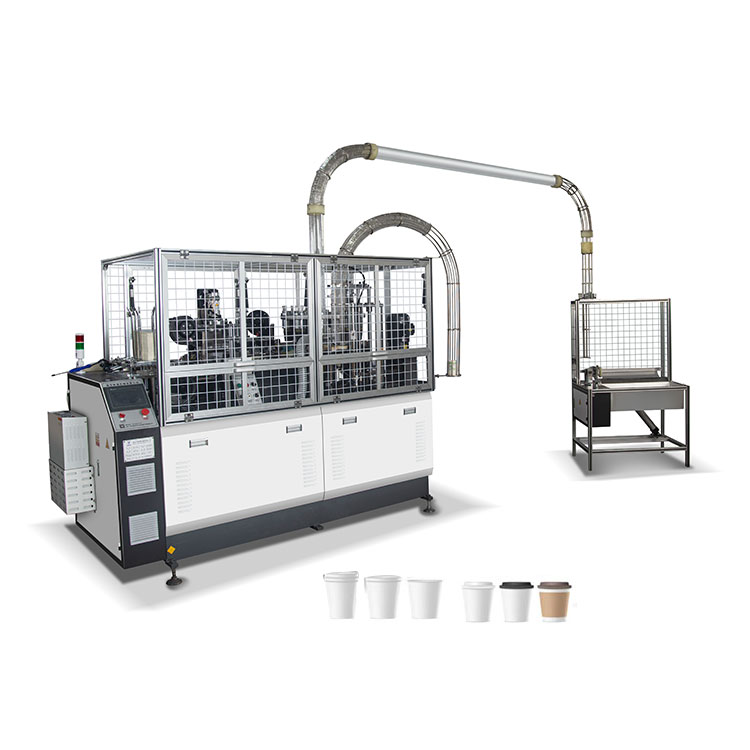

Disposable Paper Cup Machine

This Yongbo Machinery Disposable paper cup machine adopts automatic oil lubrication system( oil circulation system is including oil motor,filter, copper pipe )which makes all gear moving parts working at high speed much more smoothly and greatly Improve the service life of spare parts.This machine Control panel with good quality switches , temperature controller and speed converter.All the operation of machine can be finished easily by this panel.

Model:YB-S100

Yongbo Machinery Disposable Paper Cup Machine Introduction

The Yongbo Machinery Disposable Paper Cup Machine features a new design with an added bottom heating system that improves the sealing effect of the paper cups. With 10 cup molds, this model operates faster than older machines with only 8 molds. The steel plate presses the bottom paper to ensure stable and smooth paper feeding. Additionally, two cooling fans quickly cool the paper fan to achieve better cup fan sealing.

Yongbo Machinery Disposable Paper Cup Machine Parameter (Specification)

Model		High Speed Simple Model Ultrasonic Paper Cup Machine YB-S100
Paper Cup Size		2 - 12 OZ (Mould exchangeable, Max Cup Height: 115mm, Max Bottom width: 75mm)
Rated Speed		100- 110pcs / min ( Speed affected by cup size , paper quality thickness )
Raw Material		One or Two side PE coated Paper ( Popular for Hot and Cold drink Cups )
Suitable weight	paper	150-350gsm
Paper Source		50/60HZ,380V/220V
Total Power		5KW
Total Weight		2500KG
Pacl Size(LWH)		220013501900mm (machine size) 9007002100mm ( collecting table size)
Cup side Welding		Ultrasonic heater

Yongbo Machinery Disposable Paper Cup Machine Feature And Application

This Disposable Paper Cup Machine Control panel with good quality switches , temperature controller and speed converter. All the operation of machine can be finished easily by this panel.
This The latest design of our Disposable Paper Cup Machine includes an additional bottom heating system, which enhances the sealing effect of the paper cups compared to the older design. new design adds a bottom heating system more than the old design which make the paper cup sealing effect is more better.
3.This Disposable Paper Cup Machine operation board is large and thick integrated steel board, more durable and easy to clean.

Yongbo Machinery Disposable Paper Cup Machine Details

1.The entire Disposable Paper Cup Machine is equipped with an automatic oil lubrication system that includes an oil motor, filter, and copper pipe. This system ensures that all the gear and moving parts work smoothly at high speeds and significantly enhances the lifespan of the machine's spare parts.

2.This Disposable Paper Cup Machine is independently developed by Yongbo Machinery, it can produce paper cups of different sizes through a series of continuous processes, including more than 2 times of automatic paper feeding, paper anti-return device (to ensure accurate positioning), ultrasonic welding, using magic Hand conveyed paper fan, lubricated with silicone oil, punched at the bottom, folded at the bottom, preheated at the bottom, knurled at the bottom, and out of the cup. After comprehensive technical improvement, the machine stability has been improved.s capable of producing paper cups of various sizes through a continuous process that involves more than two rounds of automatic paper feeding, a paper anti-return device to ensure accurate positioning, ultrasonic welding, the use of a magic hand to convey the paper fan, silicone oil lubrication, bottom punching, folding, preheating, knurling, and cup ejection. With comprehensive technical enhancements, the stability of the machine has been significantly improved.The paper cup making machine, independently developed by Yongbo Machinery
3.The Disposable Paper Cup Machine steel plate presses the bottom paper to make the paper feeding more stablyand smoothly.
