Gear Box Paper Cup Machine

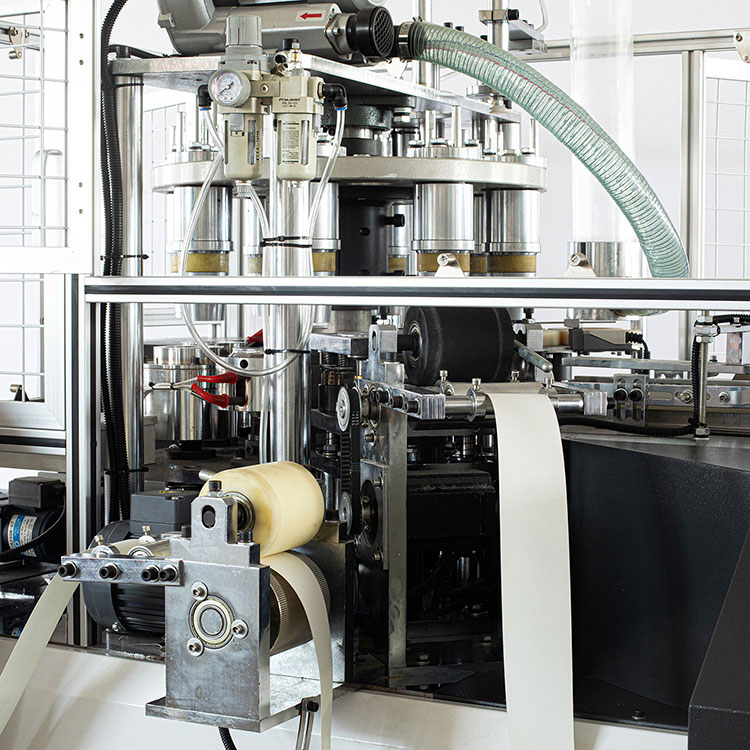

Gear Box Paper Cup Machine is a fully automatic paper cup forming machine, which can automatically feed paper through multiple rows, paper anti-backing device (to ensure accurate positioning), ultrasonic welding, transfer of mechanical paper tube, oil injection, bottoming, folding bottom, Pre-heating, knurling, unloading and other continuous processes can stably produce paper cups of various specifications. It is a paper cup equipment independently researched and improved by our company to improve the stability of the whole machine.

The Gear Box Paper Cup Machine is an advanced and fully automated device that can handle multiple rows of paper, complete with an anti-backing device that ensures accurate positioning during the production process. Equipped with ultrasonic welding, mechanical paper tube transfer, oil injection, bottoming, folding bottom, pre-heating, knurling, unloading and other continuous processes, this machine can produce high-quality paper cups in various sizes with precision and ease. Our company has independently developed and improved this equipment to ensure optimal performance and stability.

Technical Parameter:
Paper Cup Size	4ML-16oz (Various molds can be replaced according to the actual capacity of the user.)
Paper used	150-350GSM
Speed of making paper cups	65-85pcs/min
Power Voltage	220V 50Hz or380V 50Hz
Total Power	4KW
Whole machine weight	1700KG
Size ( L X W X H)	2000x1000x1700mm

Machine Details:

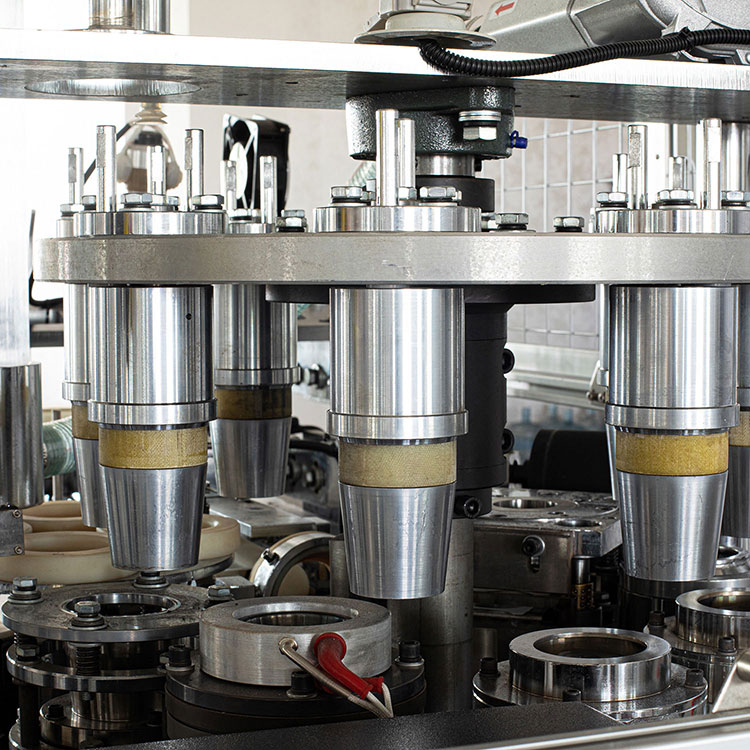

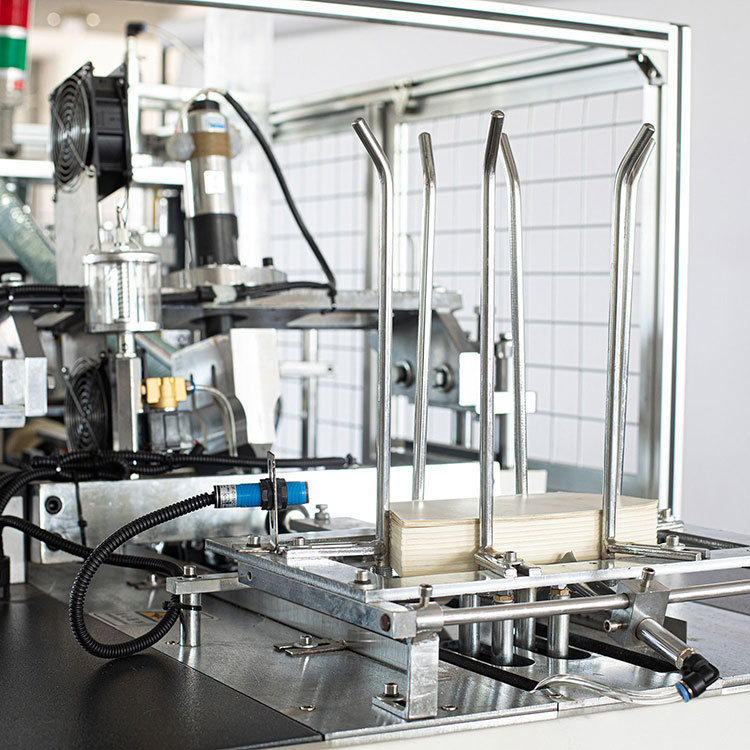

1.Multiple paper feeding

Three times of paper feeding, multiple mediation, to avoid unevenness on both sides of the paper cup.

2.Photoelectric eye detection

The machine is equipped with both encoder and optical eye control, ensuring precise and accurate operation. To prevent waste, a fan-shaped piece is installed at the bottom of the cup. In case of any faults, the machine has a fault alarm system that triggers automatic shutdown.

3.Automatic fueling system

The machine automatically refuels the positions that need to be refueled through the copper pipe, saving

labor.

4.Slot wheel

The machine's interior is assembled with a tight connection using a sheave, which enhances stability and prevents loosening during operation.

Electrical configuration

Photoelectric 441 (Panasonic)

Button

Frequency converter (Haipu)

Small relay (Chint)

Solid State Relay (Taiwan, Yangming)

AC contactor (Chint)

Air Switch

Drain the bottom

Previously, there was a tendency for the bottom paper to become creased when feeding it to the bottom. However, this machine is designed to feed the bottom paper directly to the bottom, eliminating the need for an additional step and avoiding the issue of creasing.

Below is a list of parts included in the delivery:
