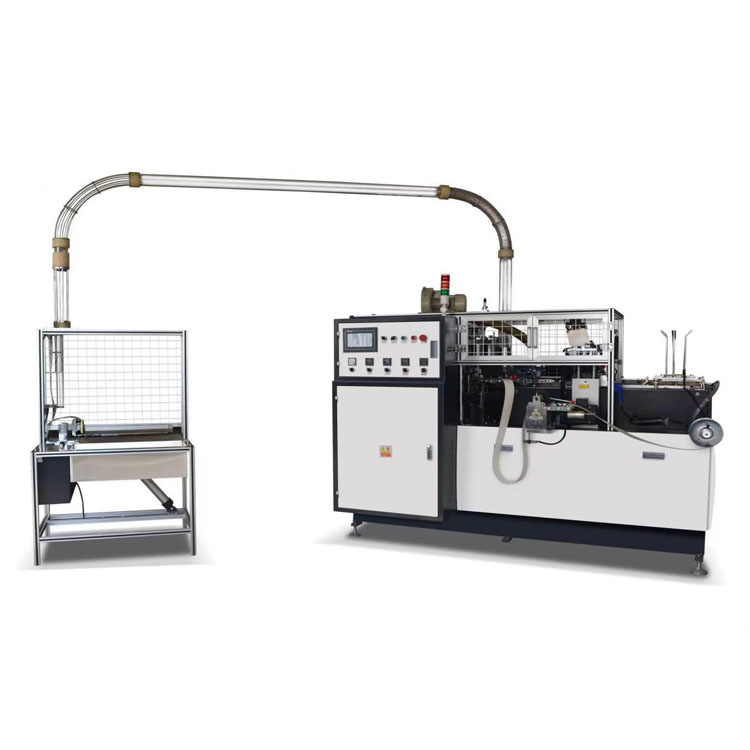

Medium And Low Speed Semi-Automatic Paper Cup Forming Machine
The Medium and Low-Speed Semi-Automatic Paper Cup Forming Machine utilizes timing quantitative grease lubrication to minimize wear on machine components. Featuring PLC-controlled cup processing, photoelectric sensor fault monitoring, and stepping motor feeding (for both cup sheet feeding and no-sheet feeding scenarios), it enhances equipment performance, ensures rapid and stable operation, achieves automatic shutdown in case of faults, reduces worker labor intensity, and improves equipment stability.
Model:YB-12
Send Inquiry
Product Description
The YB-12 semi-automatic paper cup forming machine uses a rotary plate, open intermittent indexing, chain and synchronous belt drives. Its separate lifting edge reduces mechanism travel, optimizing function assembly distribution and equipment load. It features timed grease lubrication, PLC control, photoelectric fault monitoring, and stepping motor feeding to enhance performance, stability, and reduce labor intensity. (Note: Actual capacity varies. Data provided for reference)
Yongbo Machinery Medium and low speed semi-automatic paper cup forming machine YB-12 Basic information
|
Model number |
YB-12 |
brand |
YongBomachinery
|
|
speed |
65-85min/pcs |
country |
China |
|
trademark |
Customized |
After sale |
Online |
|
transport |
Wooden Case |
warranty |
1year(non-human reason) |
Yongbo Machinery Medium and low speed semi-automatic paper cup forming machine YB-12 Machine data
|
Model number |
Medium and low speed semi-automatic paper cup forming machine YB-12 |
|
Production range |
3oz-16oz (Mold replaceable) |
|
Raw material |
Single/double PE coated paper |
|
Paper weight |
140-350 g/square meter PE coated paper |
|
speed |
65-85 PCS/min |
|
voltage |
50/60HZ,380V/220V |
|
Total power |
4 kw |
|
Gross weight |
1870KG |
|
Machine size (length * width * height |
2130*1150*1900mm (machine size)
|
|
Air pressure requirement |
0.6Mpa, exhaust gas: 0.6m3 /minute |
|
|
|
Yongbo Machinery Medium and low speed semi-automatic paper cup forming machine YB-12 Flat display
 |
 |
|
Multiple feed |
Automatic refueling system |
 |
 |
|
Punch the backing paper |
PLC control system |
Production display
