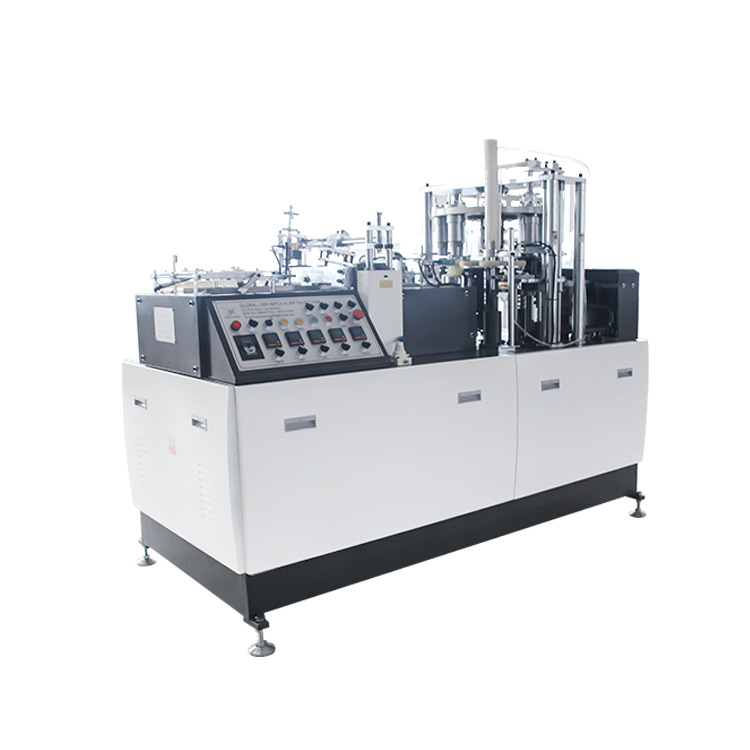

Medium Speed Paper Cup Machine Cost-Effective Basic Model

Medium and low speed automatic button operation paper cup machinYB-9 in the transmission part, the single rotary plate combined with the cylindrical indexing CAM mechanism,Make the machine faster and carry more; Increased intermittent lubrication device, improve the service life of equipment, reduce maintenance hours; Optional cup holder (automatic counting) and automatic paper feed. Suitable for producing 2.5-16 oz cold/hot paper cups.

Yongbo Machinery Medium speed paper cup machine cost-effective basic modelYB-9 Basic information



Model number	YB-9	brand	YongBomachinery
speed	65-85min/pcs	country	China
trademark	Customized	After sale	Online
transport	Wooden Case	warranty	1year(non-human reason)



Yongbo Machinery Medium speed paper cup machine cost-effective basic modelYB-9Machine data

Model number	Medium speed paper cup machine cost-effective basic modelYB-9
Production range	2oz-16oz (Mold replaceable)
Raw material	Single/double PE coated paper
Paper weight	150-350 g/square meter PE coated paper
speed	65-85 PCS/min
voltage	50/60HZ,380V/220V
Total power	4 kw
Gross weight	1870KG
Machine size (length * width * height	2130*970*1550mm (machine size)
Air pressure requirement	0.4-0.5Mpa, exhaust gas: 0.4-0.56m3 /minute



Yongbo Machinery Medium speed paper cup machine cost-effective basic modelYB-9 Flat display

Yongbo Machinery Medium speed paper cup machine cost-effective basic modelYB-9 Product introduction

1. Multiple paper feeds

Three feeds, multiple mediations, avoid both sides of the cup

It's uneven.

2. Optical eye detection

Encoder and eye control machine, a fan piece with a cup bottom, avoid waste. Failure alarm, automatic stop.

3. Automatic refueling system

The machine automatically lubricates each position through the copper pipe

Oil lubrication, save labor.

4. Groove wheel

The machine uses the groove wheel connection, each part of the connection more

Tight, the machine operation process is not easy to appear loose situation

Condition work is more accurate.

5. Flush the bottom

In the past, the complicated process of feeding the bottom paper is prone to the phenomenon of turning over. The equipment is changed to use the direct flushing mode to send the bottom to avoid turning in one step

At the end of

(Note: The actual production capacity of the machine is affected by many factors. The above data is for reference only.)

Multiple feed	Automatic refueling system
Punch the backing paper	Optical eye detection system
Optical eye detection system

Production display
