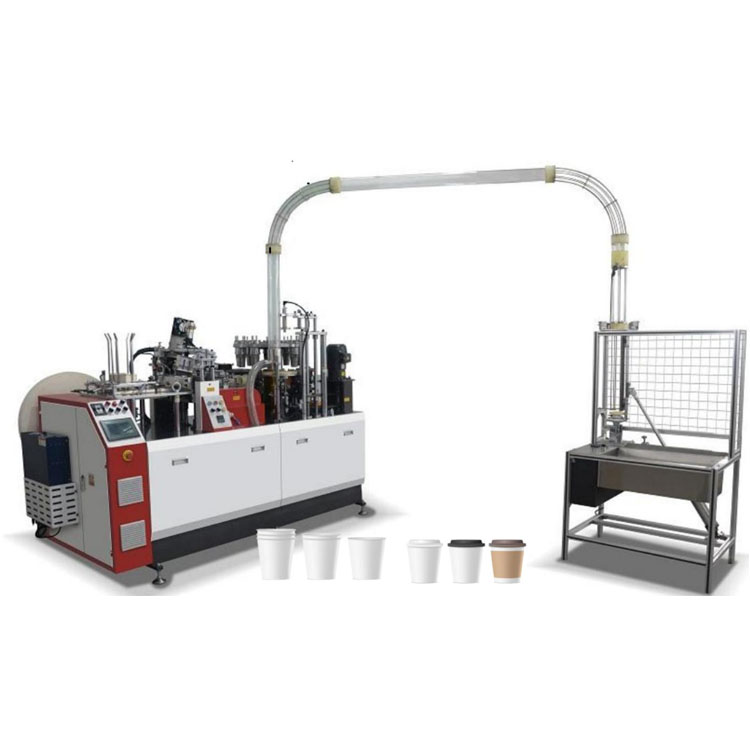

One Plate Automatic Medium Speed Paper Cup Machine
This automatic medium-speed paper cup machine with a single-plate design utilizes a light-controlled, contactless multi-point switch system to detect any irregularities in operation. This system automatically triggers a fault alarm and stops the machine, thereby safeguarding the machine parts from potential collisions and enhancing both the stability and longevity of the equipment.
Model:YB-S100
Send Inquiry
Product Description
Yongbo Machinery One plate automatic medium speed paper cup machineYB-S100 Product introduction
One plate automatic medium speed paper cup machine YB-S100 is a fully automatic paper cup forming equipment, through the air suction paper transfer, ultrasonic welding or electric heating welding, oil injection, mechanical tube transfer, cup tube, bottom punching, bottom folding, preheating, knurling, rolling, cup collection and other continuous processes, can be stable production of a variety of different specifications of paper cups, is my company independent new research and development after comprehensive technical improvement of the new shape of paper cup forming equipment.
Yongbo Machinery One plate automatic medium speed paper cup machine YB-S100 Basic information
|
Model number |
YB-S100 |
brand |
YongBomachinery
|
|
speed |
100-110min/pcs |
country |
China |
|
trademark |
Customized |
After sale |
Online |
|
transport |
Wooden Case |
warranty |
1year(non-human reason) |
Yongbo MachineryOne plate automatic medium speed paper cup machine YB-S100 Machine data
|
Model number |
One plate automatic medium speed paper cup machine YB-S100 |
|
Paper cup size |
2-12oz (Mold replaceable, Max cup height: 115mm, Max bottom width: 75mm) |
|
Operating speed |
100-110 PCS/min (speed is affected by cup size, paper quality thickness) |
|
Raw material |
Single or double sided PE coated paper (suitable for hot and cold drink cups) |
|
Gram weight of paper |
150-350 grams per square meter |
|
voltage |
50/60HZ,380V/220V |
|
Total power |
5 kw |
|
Gross weight |
2500 kg |
|
Machine size (length * width * height |
2200*1350*1900mm (machine size) 900*700*2100mm (Cup receiver size) |
|
Cup body bonding mode |
Ultrasonic wave |
Yongbo Machinery One plate automatic medium speed paper cup machine YB-S100 Flat display
 |
 |
|
Paper feed |
Bottom cover and crimped edges |
 |
 |
|
CAM drive system |
Bottom feed system |
Production display
