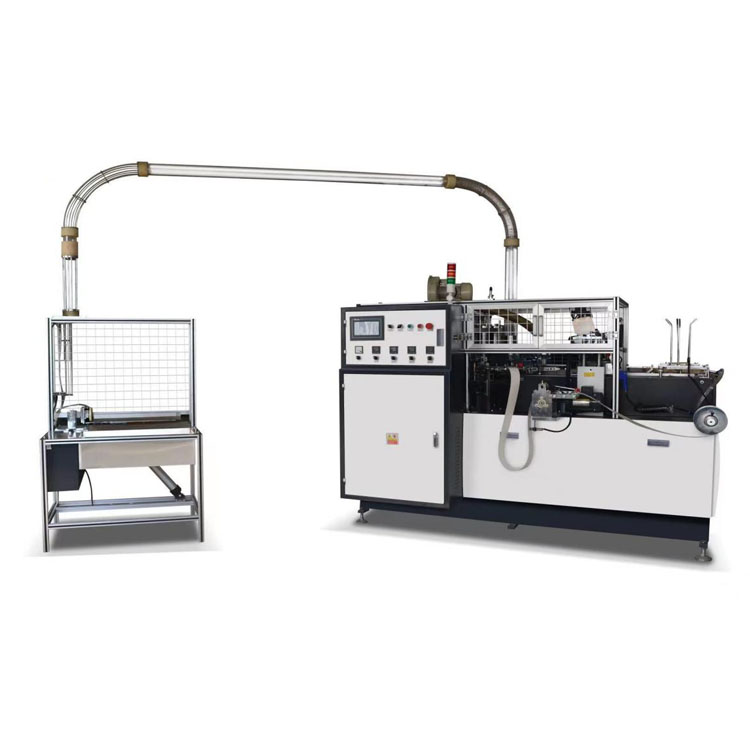

Single Plate Low Speed Semi-Automatic Paper Cup Forming Machine
Single Plate Low Speed Semi-Automatic Paper Cup Forming Machine
This Single Plate Low-Speed Semi-Automatic Paper Cup Forming Machine employs a light-control contactless multi-point switch that detects abnormal operation, triggers automatic fault alarm stop, prevents collisions between machine parts, enhances the stability and lifespan of the machine, simplifies usage, and reduces paper waste.
Model:YB-12
Send Inquiry
Product Description
Yongbo Machinery Single plate low speed semi-automatic paper cup forming machineYB-12 Product introduction
Single plate low speed semi-automatic paper cup forming machine YB-12 It is a multi-station automatic forming machine. It can produce beverage paper cups, tea cups and coffee cups by automatic feeding (printed fan paper), sealing (ultrasonic sealing of the cup wall), oil filling (lubrication of the winding mouth), flushing bottom (automatic cutting of the cup bottom from the web paper), heating, knurling (cup bottom sealing), rolling and unloading cup collection and other continuous processes, as well as photoelectric detection, fault alarm, counting and other functions , advertising paper cups, as well as market paper cups, ice cream cups or other disposable food paper containers ideal equipment。
Yongbo Machinery Single plate low speed semi-automatic paper cup forming machine YB-12 Basic information
|
Model number |
YB-12 |
brand |
YongBomachinery
|
|
speed |
65-85min/pcs |
country |
China |
|
trademark |
Customized |
After sale |
Online |
|
transport |
Wooden Case |
warranty |
1year(non-human reason) |
Yongbo Machinery Single plate low speed semi-automatic paper cup forming machineYB-12Machine data
|
Model number |
Single plate low speed semi-automatic paper cup forming machineYB-12 |
|
Production range |
3oz-16oz (Mold replaceable) |
|
Raw material |
Single/double PE coated paper |
|
Paper weight |
140-350 g/square meter PE coated paper |
|
speed |
65-85 PCS/min |
|
voltage |
50/60HZ,380V/220V |
|
Total power |
4 kw |
|
Gross weight |
1870KG |
|
Machine size (length * width * height |
2130*1150*1900mm (machine size)
|
|
Air pressure requirement |
0.6Mpa, exhaust gas: 0.6m3 /minute |
|
|
|
Yongbo Machinery Single plate low speed semi-automatic paper cup forming machineYB-12Flat display
 |
 |
|
Multiple feed |
Automatic refueling system |
 |
 |
|
Punch the backing paper |
PLC control system |
Production display
