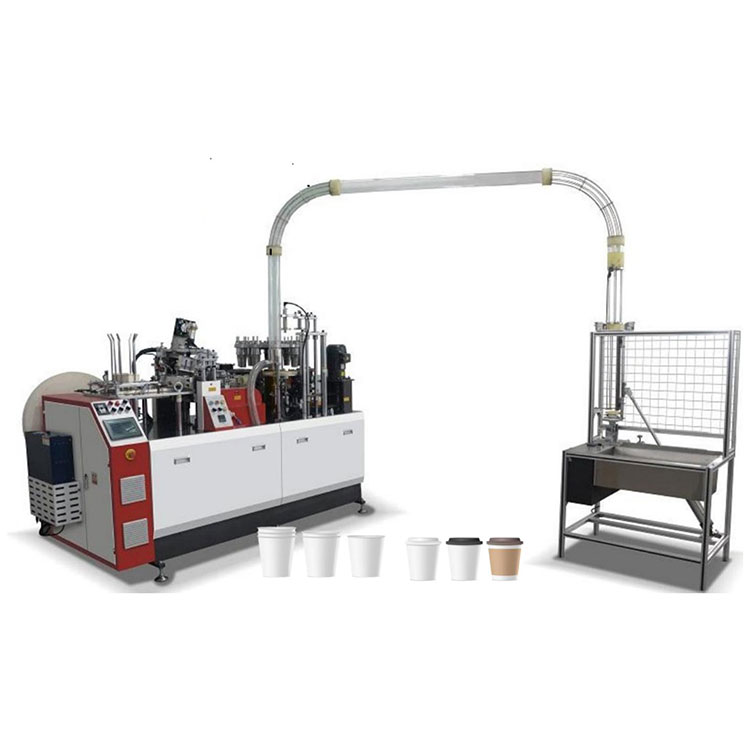

Single Plate Medium Speed Paper Cup Machine

This Single Plate Medium Speed Paper Cup Machine adopts automatic oil lubrication system( oil circulation system is including oil motor,filter, copper pipe )which makes all gear moving parts working at high speed much more smoothly and greatly Improve the service life of spare parts。temperature controller and speed converter.All the operation of machine can be finished easily by this panel。This machine Control panel with good quality switches

Yongbo Machinery single Plate Paper Cup Machine Introduction

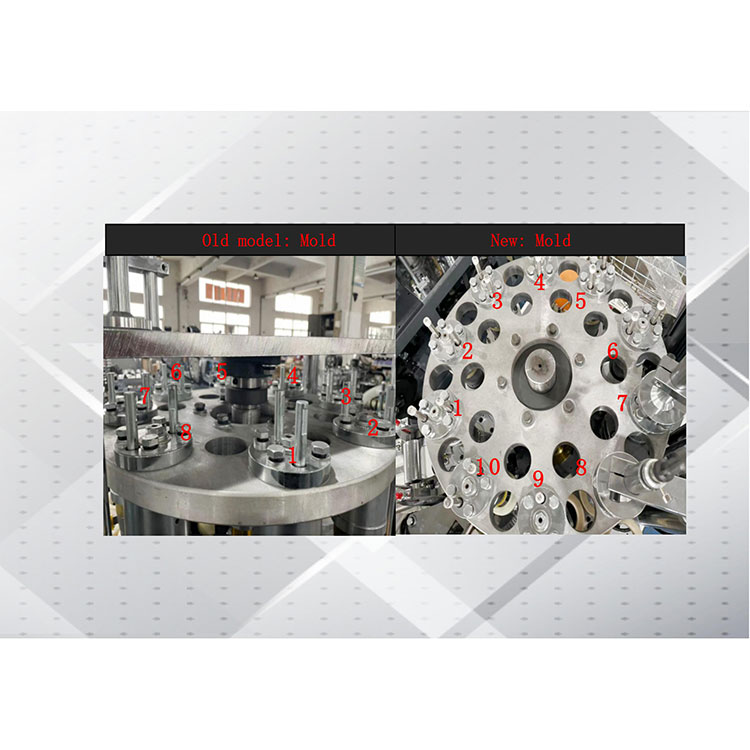

The Single Plate Medium Speed Paper Cup Machine from Yongbo Machinery has undergone a new design which includes the addition of a bottom heating system, resulting in a superior paper cup sealing effect compared to the old design. It is also equipped with 10 cup molds, allowing it to operate at a faster speed compared to the previous 8 cup molds. The steel plate pressing mechanism ensures a stable and smooth paper feeding process. Additionally, there are two cooling fans to speed up the paper fan cooling process, leading to better cup fan sealing.

Yongbo Machinery single Plate Paper Cup Machine Parameter (Specification)

Model	High Speed Simple Model Ultrasonic Paper Cup Machine YB-S100
Paper Cup Size	2 - 12 OZ (Mould exchangeable, Max Cup Height: 115mm, Max Bottom width: 75mm)
Rated Speed	100- 110pcs / min ( Speed affected by cup size , paper quality thickness )
Raw Material	One or Two side PE coated Paper ( Popular for Hot and Cold drink Cups )
Suitable weight paper	150-350gsm
Paper Source	50/60HZ,380V/220V
Total Power	5KW
Total Weight	2500KG
Pacl Size(LWH)	220013501900mm (machine size) 9007002100mm ( collecting table size)
Cup side Welding	Ultrasonic heater

Yongbo Machinery single Plate Paper Cup Machine Feature And Application

The control panel of this Open Cam Single Plate Paper Cup Machine is equipped with high-quality switches, a temperature controller, and a speed converter, enabling operators to easily operate the machine.

With its new design, this Open Cam Single Plate Paper Cup Machine includes a bottom heating system, resulting in a better sealing effect for the paper cups it produces.

The operation board of this Open Cam Single Plate Paper Cup Machine is a large and thick integrated steel board, which not only makes it durable but also easy to clean.

Yongbo Machinery single Plate Paper Cup Machine Details

1. Three times paper feeding.

Paper can be well adjusted with three times feeding process, avoid the irregularity during folding paper fan.

2. Sensor Alarming

Encoder and the sensor control the machine at the same time, one paper fan match one bottom, no waste.

Failure warning, machine stopped automatically.

3. PLC touch screen controlled.

More easier for operating and more accurate.

4.Fan for heat dissipation

Several fan installed, help machine keep suitable temperature when working.

5.Self-lubrication system.

The oil lubrication system of this machine automatically delivers oil to all the necessary parts, eliminating the need for manual oil spraying by workers.

6.Waste paper conveying.

Waste paper discharged by the tube. When the machine working, avoid the waste paper enter the machine inside part, affect machine running.

7.Ultrasonic installed inside machine

This model machine is equipped with an internal ultrasonic system, which reduces the space required for installation.

8.Bottom Cutting.

This machine simplifies the process of giving the bottom paper and avoids the problem of the bottom paper being turned over and not matching the paper fan properly.

9.Machine electrical configuration；
