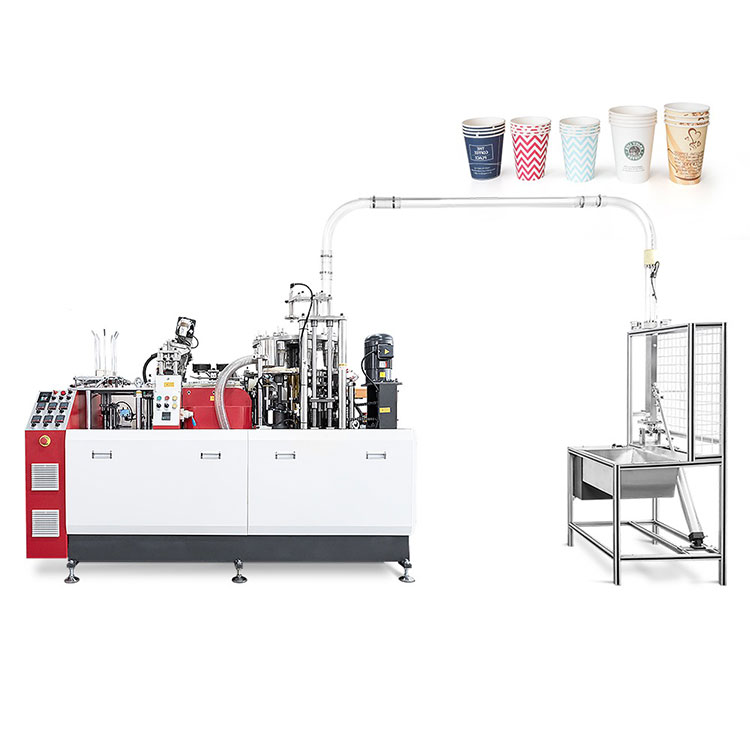

Single Plate Ultrasonic Paper Cup Forming Machine

This Yongbo Machinery® Single Plate Ultrasonic Paper Cup Forming Machine adopts a table-top layout, which isolates the forming mold from the transmission part. Automatic spray lubrication adopts longitudinal axis transmission structure, cylindrical indexing mechanism and gear transmission; various forming molds are set on the table, which is convenient for cleaning and maintenance. Electricity adopts PLC control, whole process photoelectric tracking monitoring, servo feeding. The production capacity can reach 120 pieces/min. Suitable for producing 5-16 oz cold/hot paper cups.

Yongbo Machinery Single Plate Paper Cup Machine Introduction

The latest version of Yongbo Machinery's Open Cam Paper Cup Machine features an upgraded bottom heating system that significantly enhances the sealing effect of the paper cups when compared to the older design.

This model comes equipped with 10 Cup molds, resulting in faster operation than the older 8 Cup molds. The steel plate used in this machine applies pressure to the bottom paper, ensuring a more stable and smoother paper feeding process.

Additionally, the inclusion of two cooling fans allows for faster cooling of the paper fan, which results in a better sealing effect for the cups.

Yongbo Machinery Single Plate Ultrasonic Paper Cup Forming Machine Parameter (Specification)

Model	High Speed Simple Model Ultrasonic Paper Cup Machine YB-S100
Paper Cup Size	2 - 12 OZ (Mould exchangeable, Max Cup Height: 115mm, Max Bottom width: 75mm)
Rated Speed	100- 110pcs / min ( Speed affected by cup size , paper quality thickness )
Raw Material	One or Two side PE coated Paper ( Popular for Hot and Cold drink Cups )
Suitable weight paper	150-350gsm
Paper Source	50/60HZ,380V/220V
Total Power	5KW
Total Weight	2500KG
Pacl Size(LWH)	220013501900mm (machine size) 9007002100mm ( collecting table size)
Cup side Welding	Ultrasonic heater

Yongbo Machinery Single Plate Paper Cup Machine Feature And Application

The control panel of the Single Plate Paper Cup Machine is equipped with high-quality switches, temperature controllers, and speed converters, enabling easy operation of the machine through the panel.

The machine's latest design features an upgraded bottom heating system, resulting in a significantly improved paper cup sealing effect when compared to the older design.

The operation board of this machine is made of a large and thick integrated steel board, ensuring durability and ease of cleaning.

Yongbo Machinery Single Plate Paper Cup Machine

Productivity

1.The Single Plate Paper Cup Machine can produce up to 58,000 cups per shift (8 hours), which amounts to a monthly output of 4.5 million cups when working in three shifts.
2.The machine's normal production rate boasts a qualified rate of over 99%, ensuring a high-quality production process.
3.The machine's user-friendly design allows for one operator to handle multiple machines at once, increasing efficiency and productivity.

Mechanical

1.Our Single Plate Paper Cup Machine comes with a 5-year guarantee for the mechanical parts, or until the output reaches 200 million cups, and a 1-year guarantee for the electrical parts, ensuring long-lasting and reliable performance.
2.The forming table on the machine is designed for easy access to all parts, making maintenance and cleaning hassle-free.
3.All parts underneath the forming table are lubricated through an oil bath system, and the oil should be replaced with the latest oil every 4-6 months to ensure optimal machine performance.
