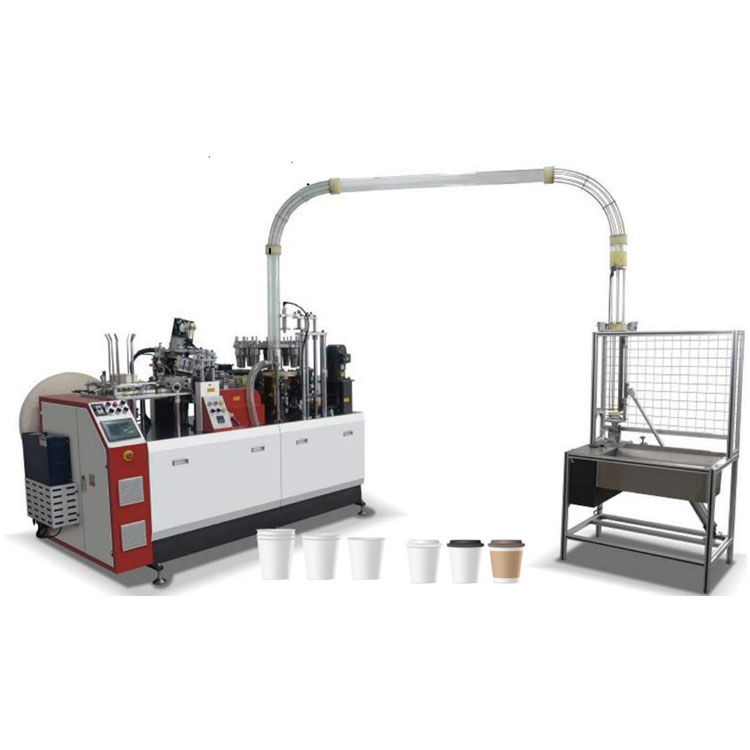

Ultrasonic Bonding Medium Speed Automatic Paper Cup Machine
The YB-S100 features mesa layout separating mold and transmission parts. Transmission components are under the table frame, with automatic spray lubrication, longitudinal shaft transmission, cylindrical indexing, and gear transmission. The mold is easily accessible for cleaning and maintenance. PLC-controlled with photoelectric tracking and servo feed, it produces 100-110 cups/min, suitable for 2-12 oz cold/hot cups.
Model:YB-S100
Send Inquiry
Product Description
The Ultrasonic Bonding Medium Speed Automatic Paper Cup Machine employs a mesa layout to segregate the mold from the transmission components. The transmission parts are positioned within the frame beneath the table, facilitating automatic spray lubrication. It utilizes a longitudinal shaft transmission structure, a cylindrical indexing mechanism, and a gear transmission system.
Yongbo Machinery Ultrasonic bonding medium speed automatic paper cup machine YB-S100 Basic information
|
Model number |
YB-S100 |
brand |
YongBomachinery
|
|
speed |
100-110min/pcs |
country |
China |
|
trademark |
Customized |
After sale |
Online |
|
transport |
Wooden Case |
warranty |
1year(non-human reason) |
Yongbo Machinery Ultrasonic Bonding Medium Speed Automatic Paper Cup Machine Machine data
|
Model number |
Medium speed intelligent paper cup machineYB-S100
|
|
Paper cup size |
2-12oz (Mold replaceable, Max cup height: 115mm, Max bottom width: 75mm) |
|
Operating speed |
100-110 PCS/min (speed is affected by cup size, paper quality thickness) |
|
Raw material |
Single or double sided PE coated paper (suitable for hot and cold drink cups) |
|
Gram weight of paper |
150-350 grams per square meter |
|
voltage |
50/60HZ,380V/220V |
|
Total power |
5 kw |
|
Gross weight |
2500 kg |
|
Machine size (length * width * height |
2200*1350*1900mm (machine size) 900*700*2100mm (Cup receiver size) |
|
Cup body bonding mode |
Ultrasonic wave |
Yongbo Machinery Ultrasonic Bonding Medium Speed Automatic Paper Cup Machine Flat display
 |
 |
|
Paper feed |
Bottom cover and crimped edges |
 |
 |
|
CAM drive system |
Bottom feed system |
Production display
